    Vacuum filling machine

    Contact us

    Consulting Hotline:0755-2728-6106

    Company name: Shenzhen Lake automation equipment Co., Ltd.
    Telephone: 0755-2728-6106
    Fax: 0755-27427175
    Mobile phone: 136-3286-0790
    Mailbox: Address: Building 3, building D, No. 12, Xinqiao industrial district, Xinqiao street, Baoan District, Shenzhen

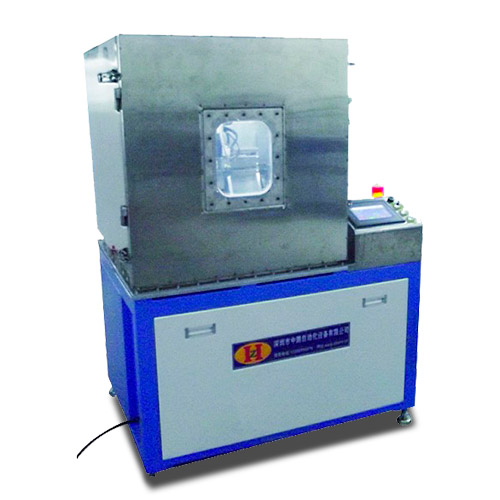

    • ZHU-500A bacuum

    ZHU-500A bacuum

    Category:Vacuum filling machine

    Description:

    Hotline:0755-2728-6106

    PurchasingConsultation

    • Introduction
    • Parameter

    | Components:

    1. Automatic machine with vacuum vacuum cleaning and vacuum suction.
    2. Vacuum potting box built-in three-axis movement platform.
    3. Vacuum pump cooling system.


    | ApplicationGlue filling products without bubbles


    | Principle of operation:


    1, the program editor: in-kind editing, and then Chen can be.
    2, will have been edited program storage, similar products can be transferred out.
    3, irrigation head movement, the pump body (stepper motor drive) for the plastic
    4. movement trajectory: straight line
    5, a plastic head up and down adjustable.


    | Parameters:

    1

        Proportion with glue

       3: 1~1:1 adjustable between 1 and any fixed proportion

    2

        Mixing method

       Static stirring

    3

        Machine travel

      500*500*100mm , itinerary can be customized according to the actual needs of the customer

    4

        Counter tops

        effective working area 500*500mm

    5

        Programming mode

         Teaching programming

    6

        Dimensions

         3200*2200*1900mm

    7

        A pump

         2.4cc/turn*2(Gear pump)Taiwan

    8

        B pump

         2.4cc/turn*2(Gear pump)Taiwan

    9

        Glue power

         Bujin Motor

    10

        Tank Capacity

         A Cylinder 25L,B Cylinder 10L(Vacuum to bubble and vacuum)

    11

        Glue bucket heating

         Electric heating plate

    12

        Vacuum degree

        <-100Kpa
    13

        A plastic flow

        2-15g/s
    14

        A plastic head

        Single

    15

        Input air pressure

         0.5-0.7Mpa

    16

        Machine power

         4000W

    17

        Supply voltage

         AC220V±10%,50-60HZ



    | Device Configuration:

    1

        Control System

       Original Panasonic PLC + 7.2 inch Kunlun on-state touch screen

    2

         Software system

        Zhonghu R&D independentl, Domestic counterparts only developed a software anti-misuse function, anti-fade automatic shutdown function


    3

         Operate motor

     YAKO Original motor

    4

         Metering pump

     Taiwan precision adjustment wear type

    5

         Cut off the system

     Zhonghu R&D independently

    6

         Mixing device

     Zhonghu R&D independently

    7

         Stirring motor

     OUTAI

    8

         Frame material

     A3*3mm manufacture

    9

        Sliding device

       Taiwan HIWIN+ Panasonic servo
    10

        Mixing tube cleaning

       Gas and liquid cleaning


    | Features

    1

    Friendly and concise interface

    Foolproof operation program design, simple operation, practical, ordinary workers can learn all operating methods in 5 minutes

    2

    High-end imported electronic control system

    The main electrical part of the wiring, dust, anti-static, have reached foreign standards
    Relay Omron.
    Using the letter Jie PLC
    All motors are overload protected.

    3

    Glue detection feedback function

    The drum part is equipped with low level alarm function, timely reminds the glue

    4

    Glue filter four protection

    Filter protection measures to reduce the mechanical pump body failure probability, to prevent impurities in the glue into the glue pipeline

    5

    Flow operation

    The machine automatically runs water continuously and has a higher efficiency

    6

    Equipment running more smoothly

    The overall frame with ultra-thick solid material, an effective solution to the machine when the high-speed movement of body shake, improve production stability and accuracy

    7

    High precision mechanical pump body

    Precision adjustment wear type

    8

    Automatic mechanical agitation

    AB glue mixed with dynamic, mechanical mixing, to ensure the true sense of AB glue mixture, completely put aside the glue dry, dry glue uneven phenomenon

    9

    High precision operation

    Taiwan HIWIN rails


    | Characteristics of Three-axis Movement:
    1, the operation is simple and convenient: touch screen display operation; all Chinese interface, the parameters of the record, display, alarm; for each product to provide the corresponding fixture, the workers training is simple, saving training time and training costs;
    2, glue control precision: all key components are imported products, to ensure high speed, precision, while meeting the conditions of automated production under the high reliability requirements.


    | Main features of machine

    1, with plastic, plastic irrigation integration, automatic operation, a machine to achieve two functions.
    2, the proportion of setting adjustment, plastic volume adjustable. Ready to use at any time, with high precision, on-demand ratio, saving glue.
    3, the operation is simple and convenient, the program is simple to edit, easy to disassemble, directly to the A B two kinds of glue were placed in two corresponding barrels, when filling with plastic, workers only need to press the switch can be.
    4, according to the performance of glue, A B plastic bucket good sealing to prevent volatile, liquid level sensor device, when the glue below this level automatically alarm, add the corresponding glue.


    Order:ZHU-500A bacuum
