    • ZHU-20  Modular filling machine

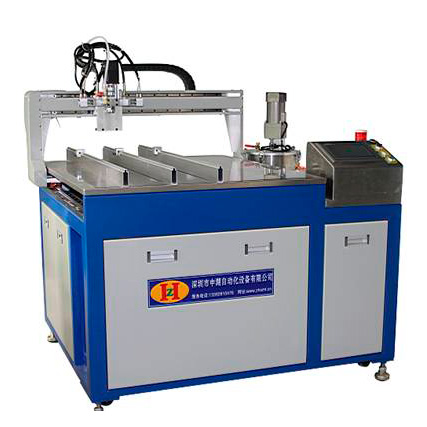

    ZHU-20 Modular filling machine

    Category:Modular filling machine

    Description:

    Hotline:0755-2728-6106

    PurchasingConsultation

    • Introduction
    • Parameter

    | Application:Display P16, P20, P10 unit board P16 full color, P8 surface paste


    | Principle:

    1, the program editor: in-kind editing
    2, will have been edited program storage, similar products can be transferred out.
    3, irrigation head movement, the pump body (stepper motor drive) for the plastic
    4, the movement trajectory: straight. Vertical line. Point. Box
    5, glue machine automatic ratio



    | Parameter

    1

        Proportion with glue

       10: 1~ 5:1 adjustable between 1 and any fixed proportion

    2

        Mixing method

       Dynamic mixing

    3

        Machine travel

       680*680*30MMitinerary can be customized according to the actual needs of the customer

    4

        Countertops

     1050*900,can be placed at the same time the car light bar

    5

        Programming mode

          Teach Programming

    6

        Dimensions

          1220*1050*1500MM

    7

        The main pump (A pump)

          12cc/turn

    8

        The main pump (B pump)

          2.4cc/turn

    9

        Glue power

          tepper motor

    10

        Tank Capacity

          Acylinder 25L,B cylinder 10L

    11

         Capacity

          Monochrome P10 300 pieces / hour, P16 full color 150 pieces / hour

    12

        A plastic head

          Number of head according to the product

    13

        Input pressure

          0.5-0.7Mpa

    14

        Machine power

         1000W

    15

        Supply voltage

          AC220V±10%,50HZ



    | Device:

    1

         Control System

        Original Panasonic PLC + motion control card +7.2 inch Kunlun on-state touch screen

    2

         Software

    Zhonghu R&D independently,Domestic counterparts developed a software anti-misuse function, anti-fade automatic shutdown function

    3

         Bujin motor

     YAKO Original motor

    4

         Metering pump body

     Taiwan precision adjustment wear type

    5

         Cut off the system

     Zhonghu R&D independently

    6

         Mixing device

     Zhonghu R&D independently

    7

         Stirring motor

     OUTAI

    8

         Frame material

     A3*3mm manufacture

    9

        Sliding device

       Taiwan HIWIN
    10

        Mixing tube cleaning

        Gas and liquid cleaning


    | Feature:

    1

    Friendly and concise interface

    Foolproof operation program design, simple operation, practical, ordinary workers can learn 5 minutes, Will be all the method of operation

    2

    High-end imported electronic control system

    The main electrical part of the wiring, dust, anti-static, have reached foreign standards
    Relay Omron.
    Using the letter Jie PLC
    All motors are overload protected.
    Using high-precision motion control system

    3

    Glue detection feedback function

    Flow detection equipment control B glue the actual output, the accuracy of ± 0.5%

    In the tip of the part of the installation of imported acid and alkali visual flowmeter, you can always see the B glue is not a plastic
     The drum part is equipped with low level alarm function, timely remind the glue to addb

    4

    Glue filter four protection

    Filter protection measures to reduce the mechanical pump body failure probability, to prevent impurities in the glue into the glue pipeline

    5

    Large work surface

    Can be placed at the same time 8 P10 workpiece, the machine automatically continuous operation, with more efficient

    6

    Equipment running more smoothly

    The overall frame with ultra-thick solid material, an effective solution to the machine when the high-speed movement of body shake, improve production stability and accuracy

    7

     High precision mechanical pump body

    Precision adjustment wear type

    8

    Automatic mechanical agitation

    AB glue mixed with dynamic, mechanical mixing, to ensure that the AB glue real sense of the mix, Completely put an end to dry glue, dry glue uneven phenomenon

    9

    High precision operation

    The use of double-layer linear slide and high-precision balance block to ensure the accuracy of operations


    | Characteristics of Three-axis Movement:

    1, the operation is simple and convenient: touch screen display operation; all Chinese interface, the parameters of the record, display, alarm; for each product to provide the corresponding fixture, the workers training is simple, saving training time and training costs;
    2, glue control precision: all key components are imported products, to ensure high speed, precision, while meeting the conditions of automated production under the high reliability requirements.


    | Features of machine

    1, with plastic, plastic irrigation integration, automatic operation, a machine to achieve two functions.
    2, the proportion of setting adjustment, plastic volume adjustable. Ready to use at any time, with high precision, on-demand ratio, saving glue.
    3, the operation is simple and convenient, the program is simple to edit, easy to disassemble, directly to the A B two kinds of glue were placed in two corresponding barrels, when filling with plastic, workers only need to press the switch can be.
    4, according to the performance of the glue, A bucket with a thermostat device, B plastic bucket sealed to prevent volatile, liquid level sensor device, when the glue below this level automatically alarm, add the corresponding glue
    5, easy to clean, AB glue mixing part of the mouth only the mixing tube, so the cleaning part of the mixing tube only, the other parts do not have to clean, if the get off work or to stop for a period of time only filling the mixing tube to take off, Clean on the line, supplies only mixing tube.


    Order:ZHU-20 Modular filling machine
